PRECISION TOOL HOLDERS
B0326-III-2

Tsugami B0326-III

Manufacturer: Tsugami
Type: Swiss-type Lathe
Model: B0326-III

The Tsugami B0326-II is a 32mm, 6-Axis Opposed Gang Tool Swiss CNC Lathe with a max of 43 tool positions and live tool capability.



Click here to learn more about compatible Quick Change Tooling options for this machine.

3268-T05B-SU
Item No: TSU-14.101.0.0461.1


Main Spindle Cross Tool w/ ER-16


Construction: Axial
Gear Ratio: 1.6666:1
Tool Clamping: HSK 32 / ER 16 / ø10 / ø13
Bearing: Spindle Bearing

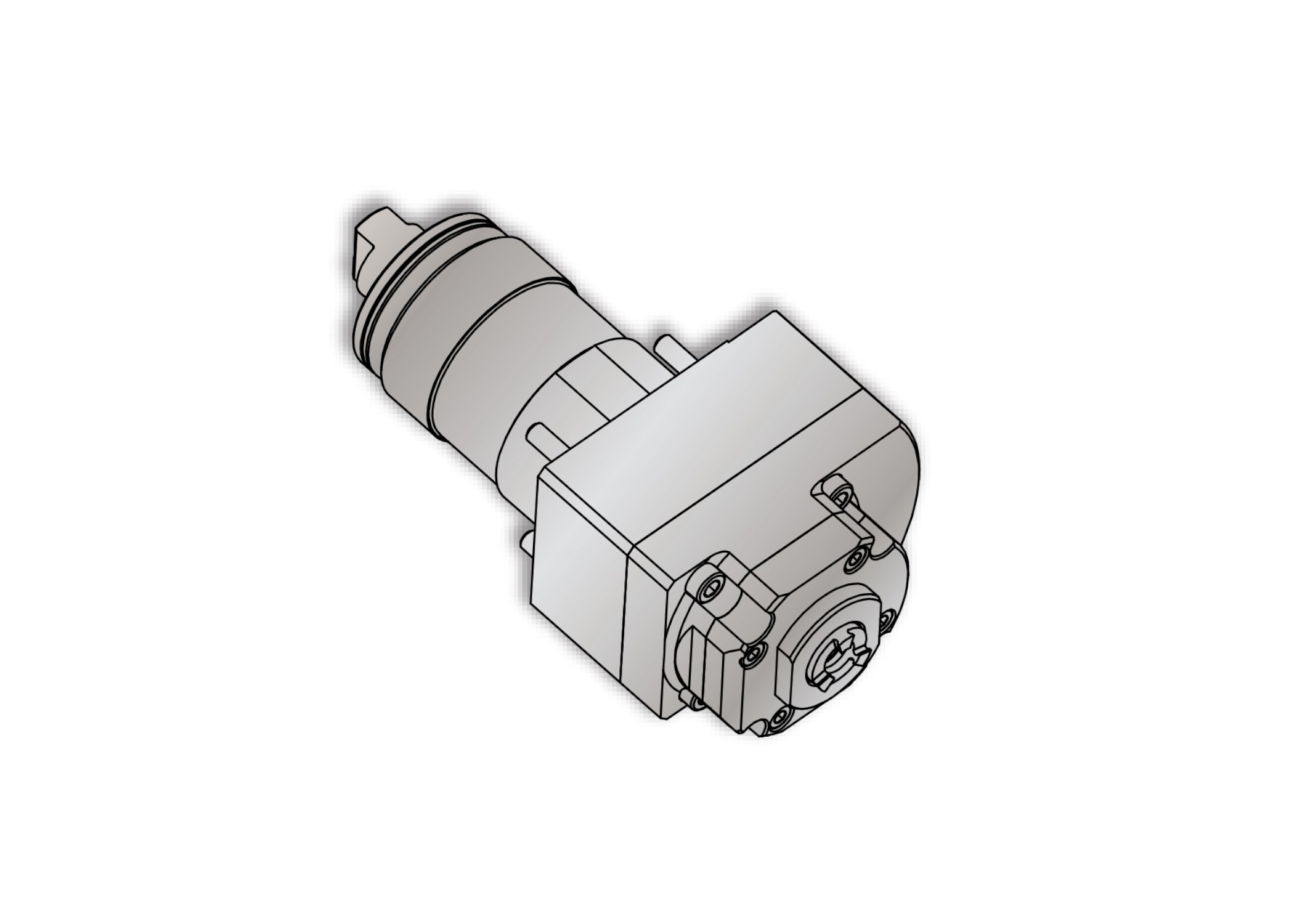

3268-T05B-SU-3X
Item No: TSU-14.101.0.0413.1


Main Spindle Cross Tool 3 x speeder unit


Construction: Radial
Gear Ratio: 1:2.93
Tool Clamping: ERAX 11
Bearing: Spindle Bearing

Oil Mist Lubrication Manual

3268-T05B-SU-QC
Item No: TSU-14.101.0.0411.1

Main Spindle Cross Tool w/ Quick Change
Construction: Radial
Gear Ratio: 1:1
Tool Clamping: QC ø24
Bearing: Spindle Bearing

3282-Y041-ER20- SU
Item No: TSU-14.101.0.0289.1


Sub Spindle Face Tool w/ ER-20


Construction: Axial
Gear Ratio: 1:1
Tool Clamping: ERAX 20
Bearing: Spindle Bearing

3282-Y041-SU-QC
Item No: TSU-14.101.0.0412.1


Sub Spindle Face Tool w/ Quick Change


Construction: Axial
Gear Ratio: 1:1
Tool Clamping: QC ø24
Bearing: Spindle Bearing

3282-Y902-SU-3SP
Item No: TSU-14.801.0.0133.1


Main Spindle Triple Spindle Face/Mill Drill Unit w/ ER-16


Construction: Axial
Gear Ratio: 1:1
Tool Clamping: ER 16
Bearing: Spindle Bearing

Collets ER 11 - ER 50
Item No: Please see PDF
Quick Change Holder
Item No: Please see PDF

Coolant: ICS
Tool Clamping: QC ø20 – QC ø30

Quick Change Preset Block
Item No: 14950200000

Tool Clamping: QC ø20 – QC ø30

3282-Y041-SU-3X
Item No: TSU-14.101.0.0429.1


Sub Spindle Cross Tool 3 x speeder unit


Construction: Axial
Gear Ratio: 1:2.93
Tool Clamping: ERAX 11
Bearing: Spindle Bearing


Oil Mist Lubrication Manual
